TD5 Live Data Logging: What We Check Before Remapping
A remap can make a good TD5 drive much better, but it will not fix an underlying fault. If the vehicle already has a weak fuel pump, poor airflow reading, boost control issue or sensor problem, mapping it without checking anything first is not the right way to do it.
At Empire Tuning, we like to check live data before and after mapping where possible. This gives us a much better picture of what the vehicle is actually doing.
That is why our in house TD5 remap includes a health check, road test and live data monitoring.
Why live data matters on a TD5
TD5s are getting older now, and no two vehicles are exactly the same.
Some are standard. Some have intercoolers, exhaust changes, EGR changes, different turbos, larger tyres, different transfer boxes or old maps already on the ECU.
On top of that, sensors and mechanical parts wear over time.
Live data helps us see what is happening rather than guessing. Fault codes are useful, but they do not always show the full picture.
A TD5 can have no fault codes and still not be performing correctly.
What do we check before remapping?
Before tuning a TD5, we normally want to look at the main areas that affect performance and reliability.
This can include:
- Fault codes
- MAF sensor readings
- MAP sensor readings
- Boost behaviour
- Throttle input
- Coolant temperature
- Air intake temperature
- Injector balance where relevant
- Fuel delivery symptoms
- General drivability on the road
The aim is not to make the process complicated. The aim is to avoid tuning over a problem that should have been spotted first.
MAF sensor readings
The MAF sensor measures airflow into the engine.
If the MAF is reading badly, the vehicle may feel flat, smoky or inconsistent.
On a TD5, a poor MAF reading can affect how the vehicle drives and how the calibration behaves.
This is why we often look at airflow data before making decisions. Replacing parts without checking data can get expensive quickly, so logging the readings first is the better route.
We have also written more technical information on TD5 MAF logging here: Defender and Discovery TD5 MAF Logging with Nanocom.
MAP sensor and boost readings
The MAP sensor is another important one.
It helps us see what boost pressure the engine is seeing. If boost is not doing what it should, the vehicle may feel underpowered, may overboost, or may go into a protection strategy depending on the issue.
Common problems can include:
- Boost leaks
- Sticking wastegate
- Split or poor vacuum hoses where fitted
- Faulty boost control parts
- Blocked or dirty MAP sensor
- Previous tuning that is not suited to the vehicle
If boost control is wrong, mapping the vehicle without checking it first can make the issue more obvious.
Fuel delivery symptoms
Fuel delivery is another big one on TD5s.
If the engine is not getting fuel correctly, a remap is not going to solve the root cause.
Symptoms can include hesitation, cutting out, kangarooing, poor power, or the vehicle not revving properly under load.
One common complaint we hear is a TD5 that will not rev past around 3200 rpm, or feels like it hits a wall. That can often point us toward fuel delivery, boost control or related data that needs checking properly.
This is exactly why live data is useful before changing parts at random.
Throttle and driver demand
Throttle input is also worth checking.
If the throttle signal is not clean or the vehicle is not responding as expected, it affects how the vehicle feels on the road.
A good remap should improve drivability, not just make the vehicle feel aggressive for the sake of it.
We want the vehicle to pull cleanly and feel usable, especially on Defenders and Discovery 2s that are used for towing, overlanding, daily driving or off road work.
Coolant and intake temperatures
Temperatures matter too.
If coolant temperature is wrong or the intake temperature is very high, the vehicle may not behave as expected.
It is also useful to know if the ECU is seeing realistic sensor data. A sensor does not always have to fail completely to cause problems.
Sometimes a sensor can be reading poorly but still not trigger a fault code.
Injector balance and running quality
Injector related issues can also affect how a TD5 drives.
If the engine is not running cleanly before mapping, that needs to be looked at first.
A remap should be applied to a vehicle that is fundamentally healthy. If the base vehicle is not right, adding more demand can make the issue worse or harder to diagnose.
Why fault codes are not enough
Reading fault codes is a good starting point, but it is not the full job.
A TD5 can have no stored fault codes and still have poor sensor data, weak boost control or mechanical issues.
This is why we do not rely only on a quick code scan.
Live data gives us the behaviour of the vehicle while it is running, which is much more useful when deciding whether it is ready for tuning.
How Just Map It helps remote customers
For customers who are not local to us, Just Map It is a very useful option.
Just Map It allows TD5 owners to read and write ECU files, carry out diagnostics and log live data from the vehicle.
That means we can ask for useful information rather than trying to diagnose everything from a message or phone call.
It also means future support is much easier if the vehicle spec changes later.

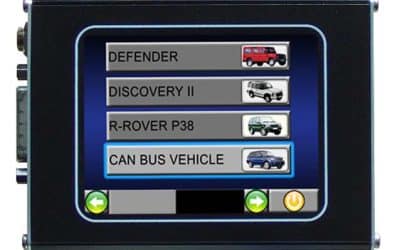

What about Nanocom?
Nanocom is still a useful diagnostic tool for TD5 owners.
It can be used for fault codes, live data and general monitoring.
For tuning and remote file support, we normally prefer Just Map It, but Nanocom still has its place for quick checks and logging.
If you already have a Nanocom, it can still be useful after the vehicle has been mapped.
Why we avoid generic mapping
TD5s vary too much now for a one size fits all approach.
A vehicle with a standard turbo and intercooler should not be treated the same as one with a larger intercooler, decat, hybrid turbo or unknown previous modifications.
That is why we ask questions before mapping and check data where possible.
The aim is to make the vehicle drive better while staying within what the setup can sensibly support.
What we need from you before tuning
If you are contacting us about a TD5 remap, it helps if you can send:
- Vehicle model
- Year
- Engine type if known
- ECU type if known
- Manual or automatic
- Current modifications
- Any known faults or symptoms
- How the vehicle is used
- Whether you can visit us or need remote support
If you already have logs from Just Map It or Nanocom, these can also be useful.
Best route for a TD5 remap
If you can bring the vehicle to us, the in house remap is normally the best route.
That allows us to check the vehicle, apply the remap, road test it and monitor live data afterwards.
If you are too far away, the postal ECU service or Just Map It remote route may be better.
The right option depends on your ECU, vehicle setup and what you want from the vehicle.
FAQ
Why is live data important before a TD5 remap?
Live data helps show what the vehicle is actually doing. It can highlight issues with airflow, boost, sensors, fuelling or running quality before a remap is applied.
Can a TD5 have no fault codes but still have a problem?
Yes. A TD5 can have no stored fault codes and still have poor sensor readings, boost issues or mechanical problems.
Do you check live data with an in house TD5 remap?
Yes. Our in house TD5 remap includes a health check, road test and live data monitoring.
Can Just Map It log TD5 live data?
Yes. Just Map It can be used to log live data, which helps with remote tuning and diagnostic support.
Can a bad MAF sensor affect a TD5 remap?
Yes. A poor MAF reading can affect how the vehicle drives and how the calibration behaves, so it is worth checking before tuning.
Should I fix faults before remapping?
Yes. Any known mechanical, sensor, fuel or boost issues should be looked at before tuning the vehicle.
Need a TD5 remap with proper checks?
If you want a TD5 remap, live data check or remote support, get in touch with Empire Tuning.
Send us your vehicle details, current modifications and any symptoms you have noticed. If you already have logs, send those over as well.
